Description

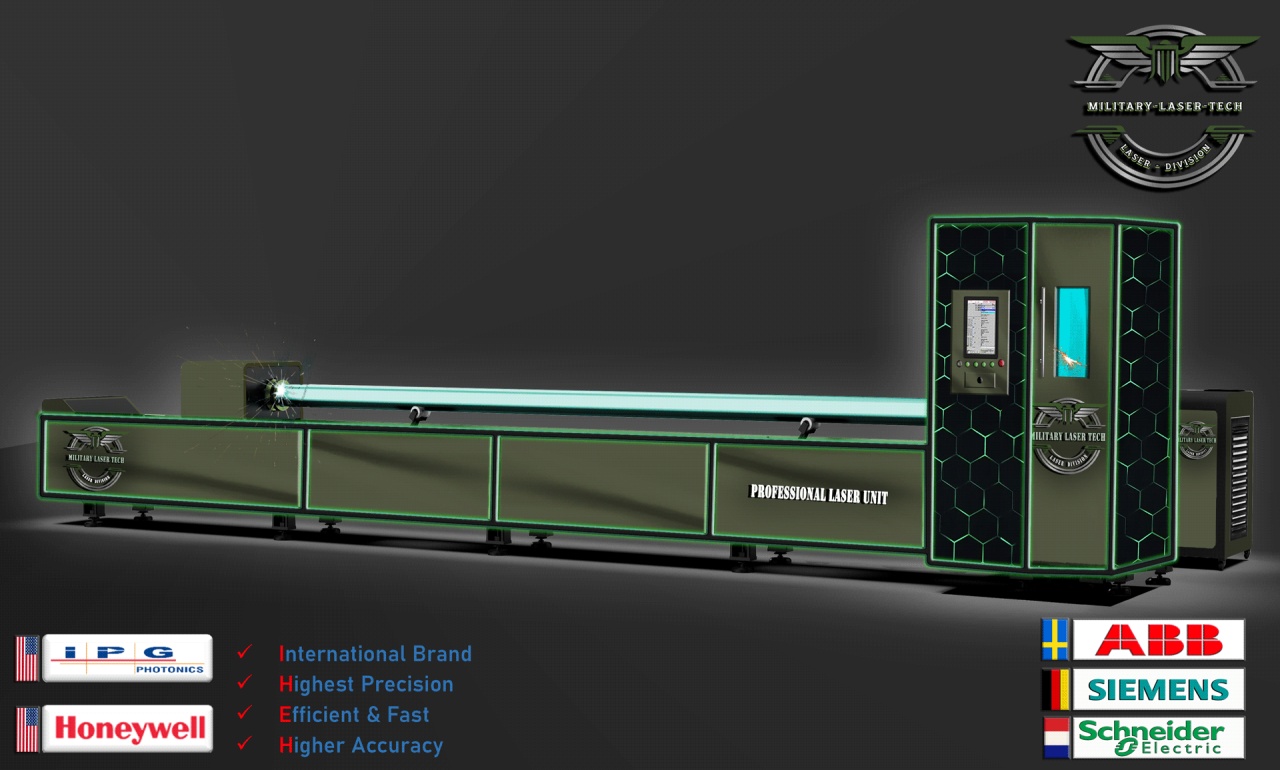

- Due to its precision and ease of use, laser cutting of pipes with the CANNON MLT-P6 by Military Laser increases quality and power in your production processes for all profiles, including open and elliptical pipes.
- Because cutting accuracy makes the difference in ensuring the perfect function of a mechanism, Military Laser's profile/pipe cutting machines are the perfect choice for quickly targeting high technology Fiber Laser.
🧼 CANNON MLT-P6 – Configuration & Technical Specifications
🔧 PIPE CUTTING MODELS & DIMENSIONS
| 🆔 Model (Catalog Code) |
📏 Pipe Diameter
/ Circumscribed Circle
|
|---|---|
| CANNON MLT-P6-160 | Ø 160 mm |
| CANNON MLT-P6-220 | Ø 220 mm |
| CANNON MLT-P6-240 | Ø 240 mm |
| CANNON MLT-P6-350 | Ø 350 mm |
⚙️ MAIN CONFIGURATION
| 🔩 COMPONENTS | 🔍 SPECIFICATIONS |
|---|---|
| 🔦 Laser Source | IPG Photonics |
| 🎯 Laser Head | RayTools / Precitec |
| ⚡ Electrical Components | Honeywell |
| 🔄 Gas & Electric Proportional Valve | EMERSON |
| ⚙️ Motor & Driver | FUJI Hybrid Servo Motor |
| 🛡️ Chassis | Monolithic |
| 🪶 CNC Beam (Crossbeam) | Lightweight, precise & reliable alloy |
| ⚙️ Transmission System | Rack & Pinion |
| ❄️ Water Cooling System | Marrshal T |
| 🌪️ Exhaust System | Centrifugal Exhaustor – 2 kW |
| 🔗 Chucks | Electromagnetic / Pneumatic |
| 📂 File Format Recognition | IGS |
| 🔍 Optical Capabilities | Multi-level fine perforation |
| 🛑 Safety Configuration | Contour recognition |
| 🧪 Pipe Inspection | Automatic pipe inspection |
| 🛡️ Anti-Collision System | Rear chuck + rollers |
| 🚨 Laser Alarm | Acoustic & visual warning system |
📊 TECHNICAL PARAMETERS
| 🧭 PARAMETERS | VALUE |
|---|---|
| 🎯 Positioning Accuracy (X/Y Axis) | ±0.03 mm |
| 🔁 Repeatability Accuracy (X/Y Axis) | ±0.02 mm |
| 🚀 Max Travel Speed | 100 m/min |
| ⚡ Max Acceleration | 1.0 G |
| 📏 Max Z-Axis Speed | 60 m/min |
| 🧱 Max Load on Table | 20 – 40 kg/m |
| 🔄 Max Chuck Rotation Speed | 80 r/min |
| ➡️ Max Chuck Feed Speed | 90 m/min |
| 🌀 Pipe Cutting Specs | • Round pipe: Ø16 – Ø340 mm |
| • Square pipe: Ø16 – Ø340 mm | |
| • Rectangular profile: circumscribed Ø ≤ 345 mm | |
