HIGH POWER LASER CUTTING MACHINE / CNC for METAL SHEET (ENCLOSED AREA FOR SAFETY)
How can we help?
Description
🛡️ Excellence in Metal Panel Processing

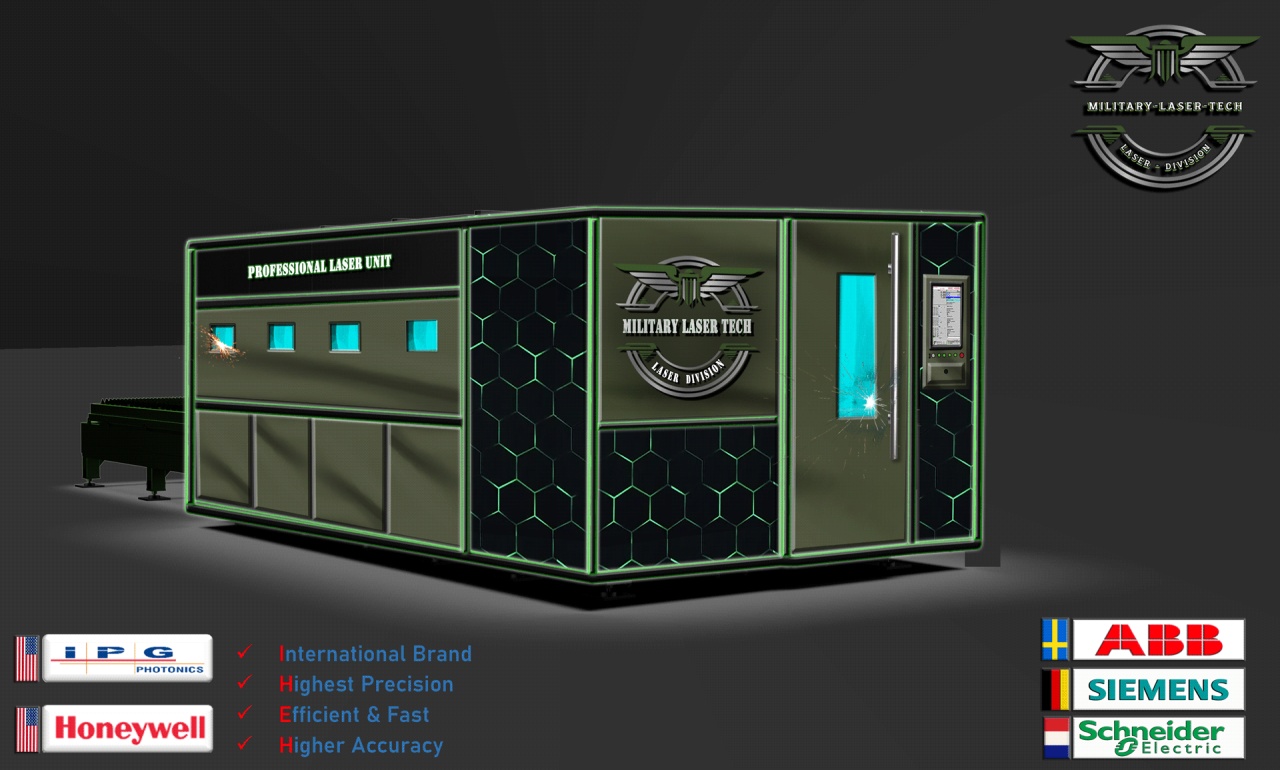

When it comes to mastery in metal panel processing, the ARMORED ROVER MLT by Military Laser stands as the embodiment of our top-tier expertise.
This intelligent machine brings together first-class engineering and innovative design — setting new standards in performance and precision.
⚡ Power, Vision & Precision in One System
Equipped with real-time process visualization inside its armored structure, the ARMORED ROVER MLT combines the speed and acceleration of a roadster with the precision of a Swiss timepiece. A true powerhouse designed for professionals who demand nothing less than excellence.
🔧 PRODUCT MODELS & Z AXIS TRAVEL
| 🆔 Model (Catalog Code) | 📐 Working Area &
Z-Axis Travel of laser head
(mm)
|
|---|---|
| ARMORED ROVER MLT 31.5 | 3000 × 1500 mm ｜ Z-axis travel: 20 mm |
| ARMORED ROVER MLT 42 | 4000 × 2000 mm ｜ Z-axis travel: 20 mm |
| ARMORED ROVER MLT 62 | 6000 × 2000 mm ｜ Z-axis travel: 20 mm |
| ARMORED ROVER MLT 62.5 | 6000 × 2500 mm ｜ Z-axis travel: 20 mm |
⚙️ MAIN CONFIGURATION
| 🔩 COMPONENTS | 🔍 SPECIFICATIONS |
|---|---|
| 🔦 Laser Source | IPG Photonics |
| 🎯 Laser Head | RayTools / Precitec |
| ⚡ Electrical Components | Honeywell |
| 🔄 Electric & Gas Control Valve | EMERSON |
| ⚙️ Motor & Driver | FUJI Hybrid Servo Motor |
| 🛡️ Chassis | Monolithic |
| 🪶 CNC Beam | Lightweight, precise & reliable alloy |
| 🛑 Radiation Shielding + Video System | Military Defense Technology |
| 🛠️ Loading System | Dual Hydraulic Table |
| ⚙️ Transmission System | Rack & Pinion |
| ❄️ Water Cooling System | Marrshal T |
| 🌪️ Exhaust System | Centrifugal Exhaustor – 2 kW |
📊 TECHNICAL PARAMETERS
| 🧭 PARAMETERS | VALUE |
|---|---|
| 🎯 Positioning Accuracy (X/Y Axis) | ±0.02 mm |
| 🔁 Repeatability Accuracy (X/Y Axis) | ±0.02 mm |
| 🚀 Maximum Travel Speed | 200 m/min |
| ⚡ Maximum Acceleration | 2 G |
| 🔌 Power Supply | 3-Phase – 380V, 50/60 Hz |
