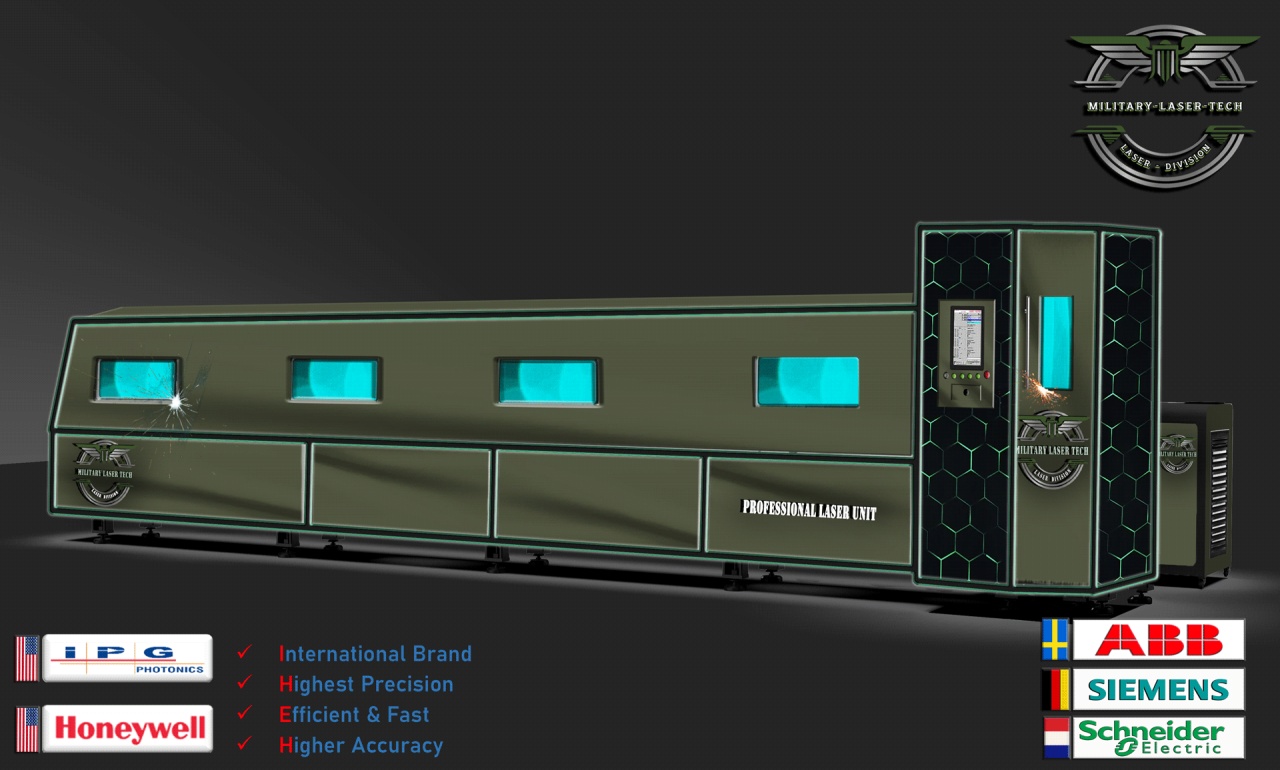

HIGH POWER LASER CUTTING MACHINE for METAL PROFILE (PROTECTED)
How can we help?
Description
🧼 ARMORED AUTOMATIC CANNON MLT-P6 – Configuration & Technical Specifications
| 📊 SPECIFICATIONS | ⚡ MLT-P6 - MLT-P6-240 |
|---|---|
| 🪖 Laser Source | IPG Photonics |
| 🏹 Laser Head | Raytools/Precitec |
| ⚙️ Electrical Components | Hunywell |
| ⚖️ Proportional Valve & Gas Control | EMERSON |
| 🔧 Motor & Driver | FUJI Hybrid Servo Motor |
| 🏰 Frame | Monolit |
| ⚙️ CNC Bridge | Lightweight, precise, and reliable alloy |
| 🔗 Transmission System | Pinion-Rack |
| ❄️ Water Cooler | Marrshal T |
| 🌪️ Exhaust System | Centrifugal Exhaust Fan 2 kW |
| 🧲 Mandrel | Electromagnetic/Pneumatic |
| 🖥️ File Format Recognition System | IGS |
| 🔭 Optical Capabilities | Fine perforation on multiple levels |
| 🛡️ Safety Configuration | Contour recognition, Automatic pipe inspection, Anti-collision function (back mandrel & rollers) |
| 🚨 Laser Alarm | Acoustic & visual warning |
| 🚨 Cooling Alarm | Cooling parameter warning system |
| 🔄 Loading System | Automatic self-loading system Marrshal |
🧰 Technical Parameters & Details
| 📊 SPECIFICATIONS | ⚡ MLT-P6 - MLT-P6-240 |
|---|---|
| 📏 Positioning Accuracy (X/Y Axis) | ±0.03 mm |
| 📐 Repeatability Positioning Accuracy (X/Y Axis) | ±0.02 mm |
| 🚀 Max Running Speed | 100 m/min |
| 🔋 Electrical Power Supply | 3-phase, 380V, 50/60Hz |
| ⚡ Max Acceleration Speed | 2.0G |
| 🏃 Max Z-Axis Speed | 90 m/min |
| ⚖️ Max Load on Working Table | 20 Kg/m - 40 Kg/m |
| 🛠️ Max Mandrel Speed | 80 rpm |
| 🧲 Max Feed Speed of Mandrel | 90 m/min |
| 📏 Pipe Cutting System Specifications | Round pipe: Φ16-Φ240mm |
| Square pipe: Φ16-Φ240mm | |
| Rectangular pipe: Circle diameter ≤235mm |
