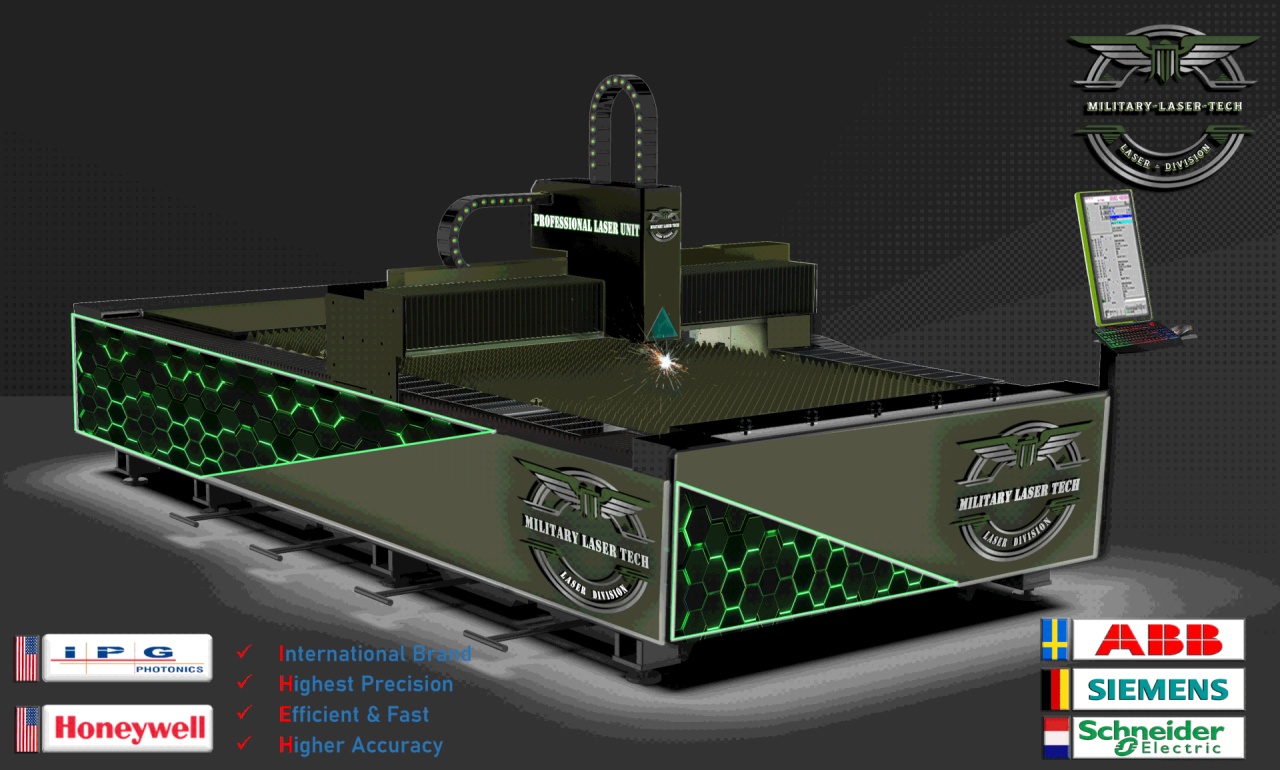

ROVER MLT – CNC / LASER METAL SHEET CUTTING MACHINE (OPEN TYPE)
How can we help?
Description
🚀 High-End Performance with Low Investment
Unlock first-class quality and technical expertise without overspending. ROVER MLT machines by Military Laser deliver top-tier results with minimal investment and reduced operational costs — a smart, scalable solution for your business.
⚙️ Efficiency That Drives Results
At Military Laser, efficiency is more than a goal — it's a strategic advantage.
The MLT metal panel cutting systems offer rapid access to cutting-edge Fiber Laser technology, combining speed, accuracy, and low-cost operation in one powerful solution.
🔧 PRODUCT MODELS
| 📒 |
Model
(Catalog Code)
|
📐 Working Area
(mm)
|
Z-Axis Travel of laser head
(mm)
|
|---|---|---|---|
| 🆔 | ROVER MLT 31.5 | 3000 × 1500 | 20 |
| 🆔 | ROVER MLT 42 | 4000 × 2000 | 20 |
| 🆔 | ROVER MLT 62 | 6000 × 2000 | 20 |
| 🆔 | ROVER MLT 62.5 | 6000 × 2500 | 20 |
⚙️ MAIN CONFIGURATION
| 🔩 | COMPONENTS | 🧰 SPECIFICATIONS |
|---|---|---|
| 🔦 | Laser Source | IPG Photonics |
| 🎯 | Laser Head | RayTools – Auto Focus |
| ⚡ | Electrical Components | Honeywell |
| 🔄 | Electric & Gas Proportional Valve | EMERSON |
| ⚙️ | Motor & Driver |
FUJI Hybrid Servo Motors /
Yaskawa Electric
|
| 🛡️ | Chassis | Monolithic |
| 🔳 | CNC Beam |
Lightweight, precise
& reliable alloy
|
| ⚙️ | Transmission System | Rack & Pinion |
| ❄️ | Water Cooling System | Marrshal T |
| 🌪️ | Exhaust System | Centrifugal Exhaustor – 2 kW |
📊 TECHNICAL PARAMETERS
| 🧭 | PARAMETERS | 🔢 VALUE |
|---|---|---|
| 🎯 | Positioning Accuracy (X/Y Axis) | ±0.03 mm |
| 🔁 | Repeat Positioning Accuracy (X/Y Axis) | ±0.02 mm |
| 🚀 | Maximum Travel Speed | 150 m/min |
| ⚡ | Maximum Acceleration | 1.5 G |
| 🔌 | Power Supply 3-Phase | , 380V, 50/60 Hz |
